OEM Electric golf cart 36V 100Ah lifopo4 battery rechargeable 36 volt lithium ion battery with LCD
Lithium Iron Phosphate Battery 36V 100Ah
Nominal Voltage 38.4V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 3840 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.

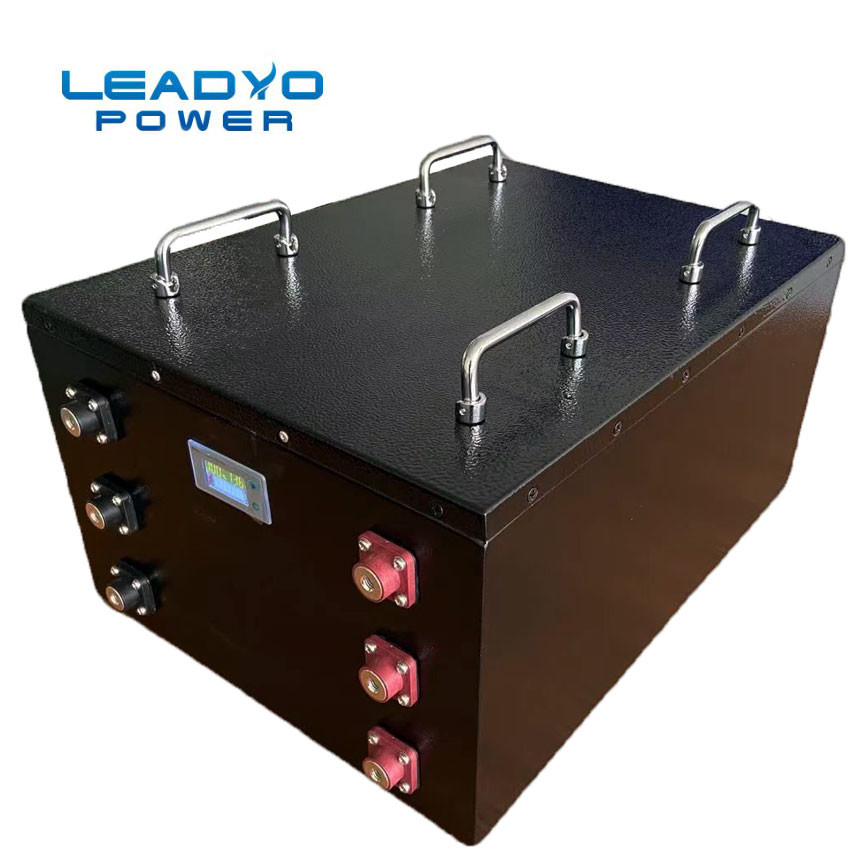

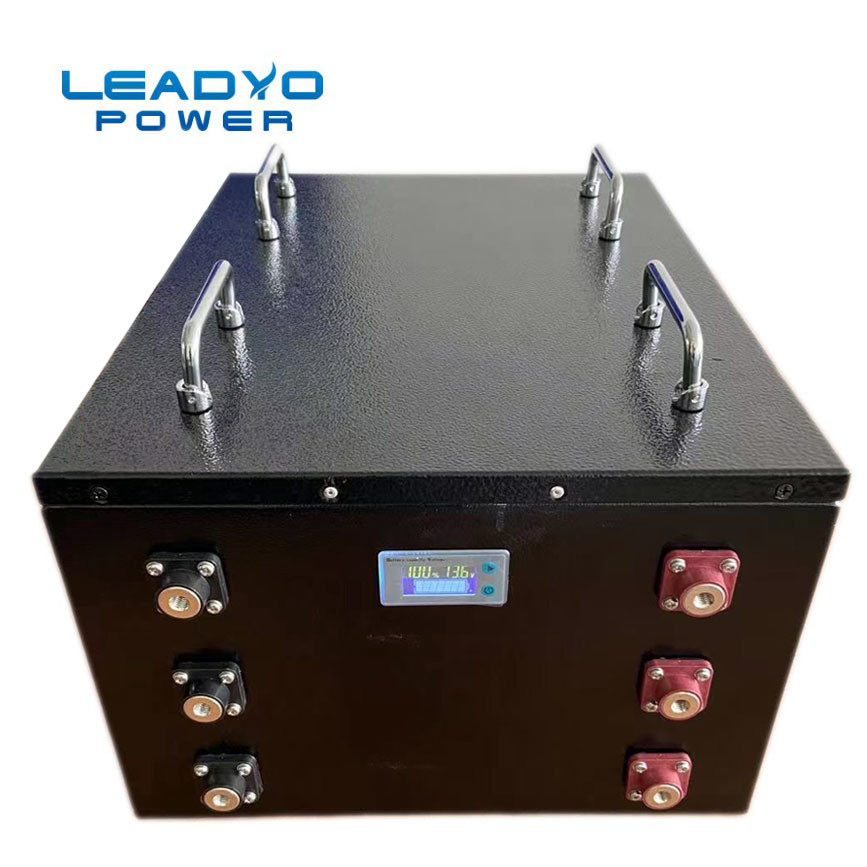

Lithium Iron LFP 36V 100Ah Battery pack:
• Steel Case design, Sturdy and Durable.
• Handle design, easy to carry and install.
• Bluetooth,LCD display or with RS485/CAN communication with your Golf Carts.
• Built-in Safety System.
• Simply drop in as a direct replacement for lead acid battery.
Contact us to custom your own golf cart battery packs ,NO MOQ.
| ELECTRICAL SPECIFICATIONS | | MECHANICAL SPECIFICATIONS |
| Nominal Voltage | 38.4V | | Terminal Type | M8 |
| Nominal Capacity | 100Ah | | Weight | 36kg |
| Nominal Energy | 3840Wh | | Case Dimension(L*W*H) | 550*305*260mm |
| Internal Resistance | ≤30 @50% SOC | | Case Type | Steel Case |
| Capacity | @20A: 300minutes(5hours) | | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | | LCD or Bluetooth Function | Optional |
| Maximum In Series and Parallel | NO | | BMS:low voltage,high voltage,over temperature, |
| Maximum In Parallel | No limit | | Over current,short-circuit protection .etc |
| Discharge Current and Voltage Specifications | | Charge Current and Voltage Specifications |
| MAX Continuous Discharge Current | 150A | | Max Charge Current | 150A |
| Peak Current | 500A | | Recommended Charge Current | 20A - 50A |
| Discharge pulse current | 700±100A (31±10ms) | | End of Charge voltage | 43.2V±0.2V |
| BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | | Balancing current | Auto start |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | | COMPLIANCE SPECIFICATIONS |
| Discharge Temperature | -20～+65℃ | | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | | UL1642 & IEC62133 for cells |
| Storage Temperature Range | -20～+45℃ | |
| BMS High Temperature Protection | 90℃ | | Shipping classification | UN 3480 |
| Battery High Temperature Protection | 60℃ | | |
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
